Pure Performance

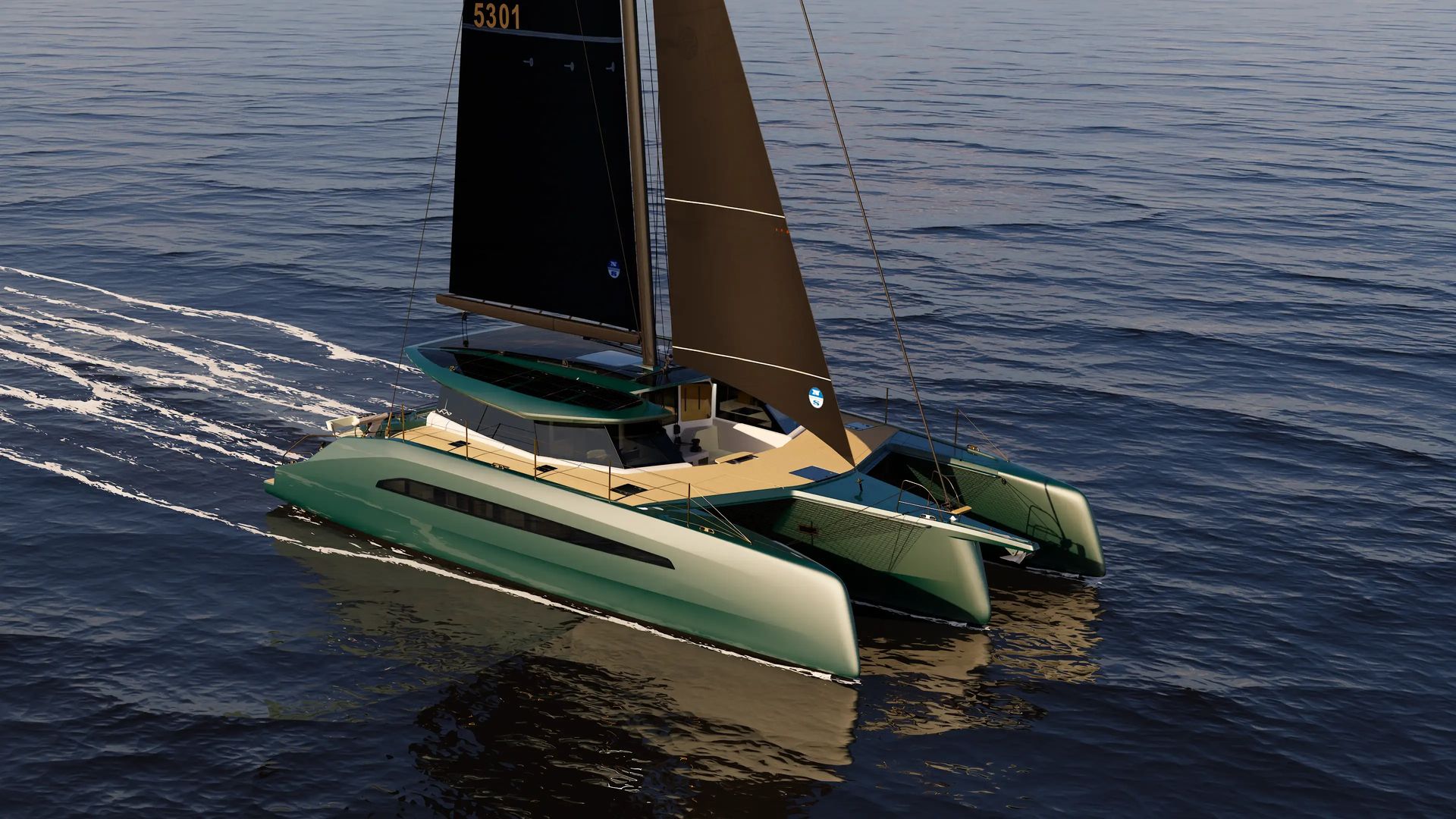

VMG 53 Core

The agile entry point to the VMG range. Race-bred performance in a package designed for shorthanded ocean sailing.

53 ft

LOA

25 ft

Beam

8.2 ft

Draft

4,500 kg

Displacement

22 kts

Max Speed

1,200 nm

Range

Cabins

CE-A

Stripped Back. Purpose Built.

The VMG 53 Core is the purest expression of the VMG design philosophy. Every element serves a function. The hull form is optimised for speed in a wide range of conditions, from light coastal breezes to heavy offshore weather.

Designed by MB Burrow in collaboration with VPLP/CCA, the Core edition prioritises sailing performance above all else. The result is a trimaran that rewards skilled sailors with extraordinary speed and responsiveness.

Technical Data

Full Specifications

Dimensions

Length Overall (LOA) 53 ft / 16.15 m

Waterline Length (LWL) 51.2 ft / 15.60 m

Beam Overall 25 ft / 7.62 m

Draft (Boards Up) 2.8 ft / 0.85 m

Draft (Boards Down) 8.2 ft / 2.50 m

Mast Height 72.2 ft / 22.0 m

Weight & Performance

Displacement (Light) 4,500 kg / 9,920 lbs

Displacement (Loaded) 5,800 kg / 12,787 lbs

Max Speed 22 knots

Cruising Speed 12–16 knots

Range Under Power 1,200 nm

Sail Plan

Mainsail Area 75 m² / 807 ft²

Genoa / Jib 45 m² / 484 ft²

Spinnaker (Asymmetric) 160 m² / 1,722 ft²

Total Upwind SA 120 m² / 1,291 ft²

Accommodation

Cabins 3 (1 main hull + 2 amas)

Berths 6

Heads 2 (with separate shower)

Galley Full (main hull saloon)

CE Category A (Ocean)

Performance

Built to Outperform

30%

Faster than equivalent monohulls in all conditions

40%

Less fuel consumption under power than catamarans

15°

Maximum heel angle under full sail

Explore More

Interior

Functional Elegance

The Core edition interior is designed around the needs of performance-focused sailors. The central hull houses a bright, open-plan saloon with a fully equipped galley and dedicated navigation station. Panoramic windows flood the space with natural light.

Open-Plan Saloon

Full Galley

3 Private Cabins

Nav Station

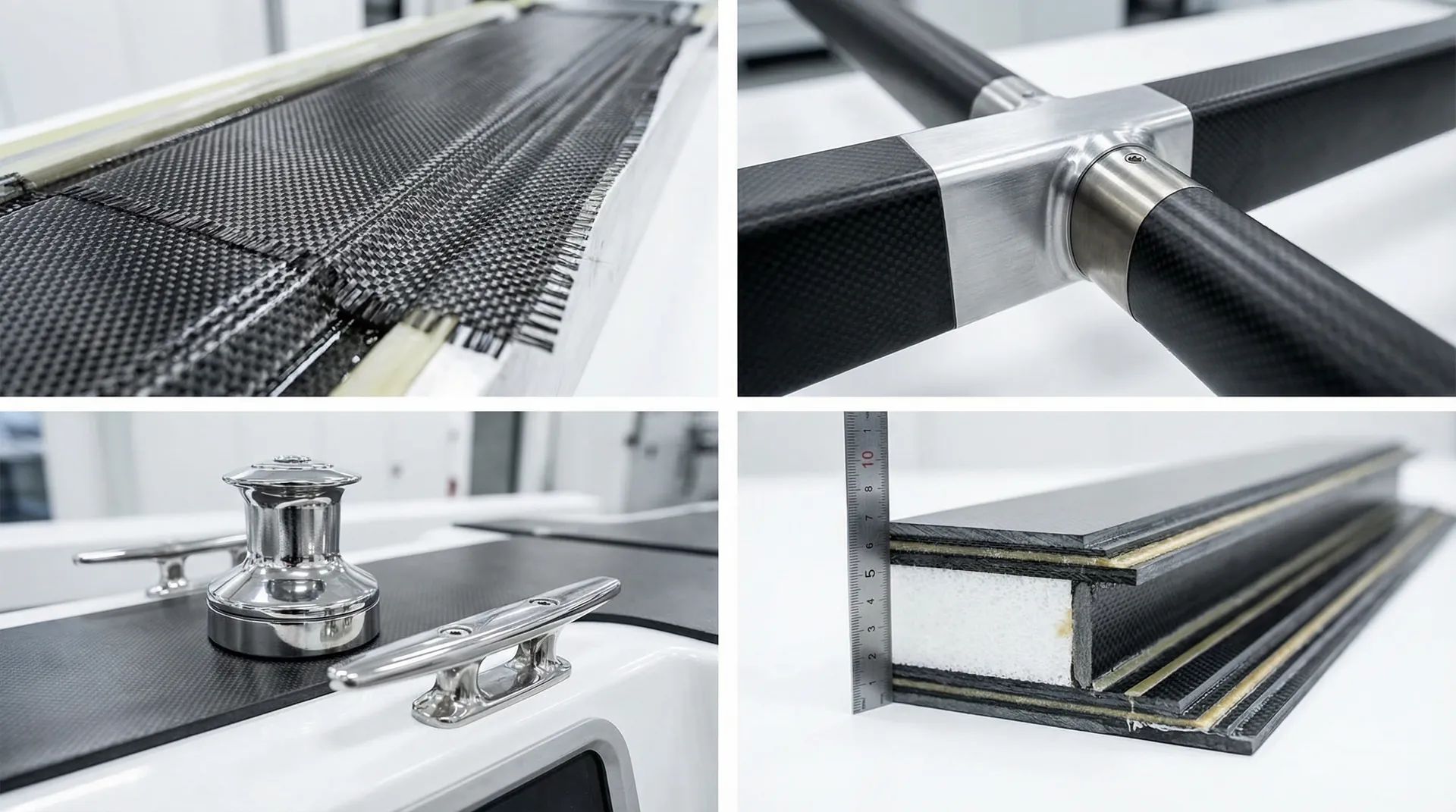

Construction

Advanced Composite Engineering

The VMG 53 Core is built using vacuum-infused carbon fibre and Corecell foam sandwich construction. This delivers an exceptional strength-to-weight ratio that translates directly into performance on the water.

Vacuum-infused carbon fibre hull and deck

Corecell foam sandwich core technology

Epoxy resin system for marine durability

Carbon fibre mast and standing rigging

CE Category A ocean certification

Close-up of VMG 53 Core carbon fibre hull construction detail

Included as Standard

Equipment Highlights

Sail Handling

Self-tacking jib, electric primary winches, and a fully battened square-top mainsail with lazy jacks for effortless shorthanded sailing.

Electronics

B&G Zeus chartplotter, Halo radar, AIS transceiver, and a full suite of wind, speed, and depth instruments with wireless display repeaters.

Safety

Offshore liferaft, EPIRB, jacklines, and a comprehensive safety kit meeting World Sailing Category 1 requirements for ocean racing.

Configure Your VMG

Choose your model, select your layout, specify your systems. Every VMG trimaran is built to order, tailored to your sailing ambitions.

Start Configuration Speak to a Specialist
